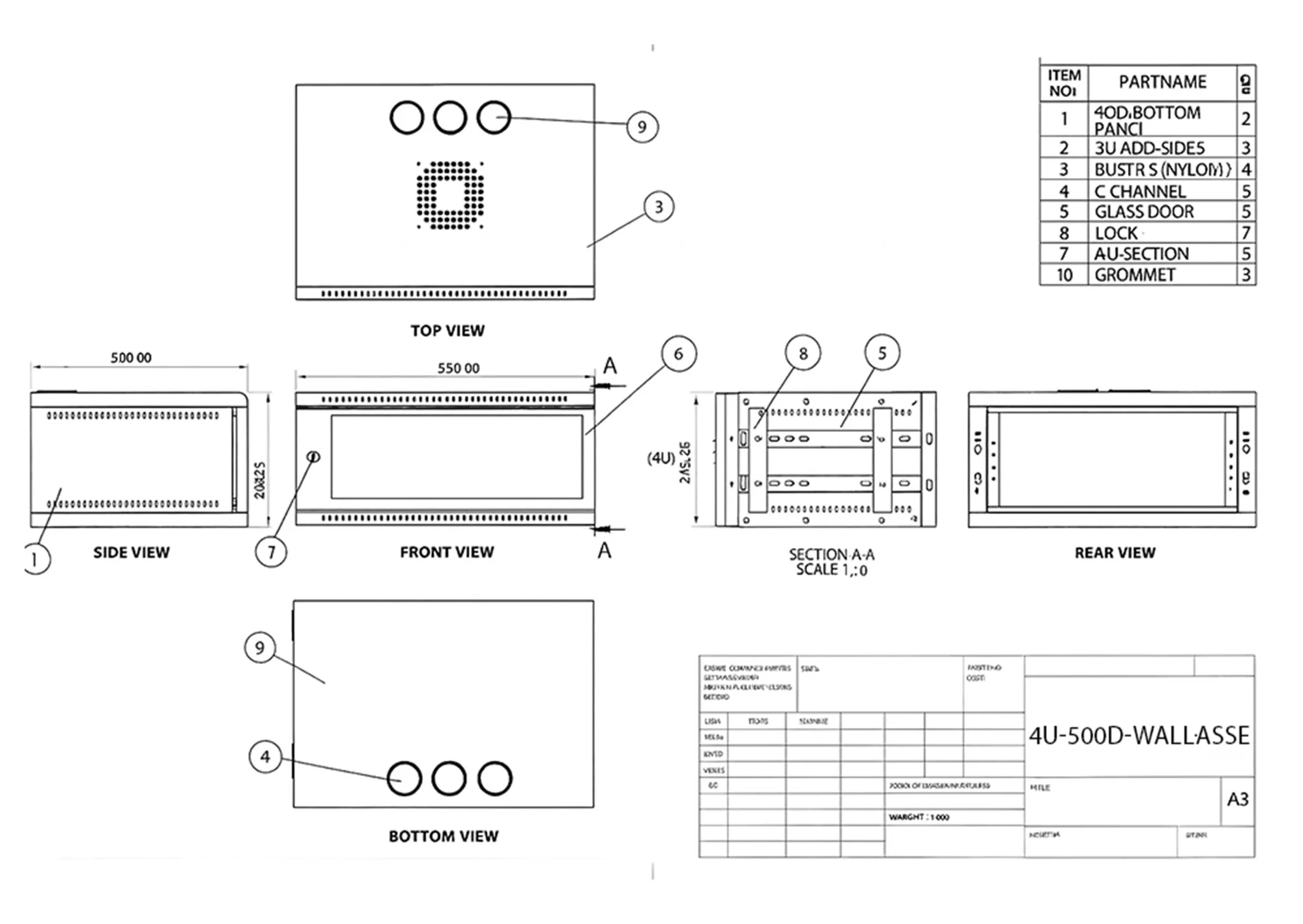

CAM 4U 500
WALL MOUNTING RACK 4U 500
Specification
Model No
CAM4U500D
Capacity
4U
Width
550 mm
Depth
500 mm
Height
260 mm
Features
- Rack Standard: Conforms to DIN 41494 or ISO equivalent standard
- Construction: Welded
- Front Door: Lockable Toughened Glass Door, Lock & Keys
- Basic Frame: CRCA Steel
- Equipment Mounting: DIN Standard Slots
- Angle: 19″ mounting angles made of formed steel
- Finish: 7-Layer Powder Coated
- Top & Bottom Cover: Welded to frame, vented with field cable-entry exit cut-outs
- Colour: Frame RAL 7035, Door RAL 7037
- Static Load: 30 kgs
Technical Data are typical values and subject to change without notice.
